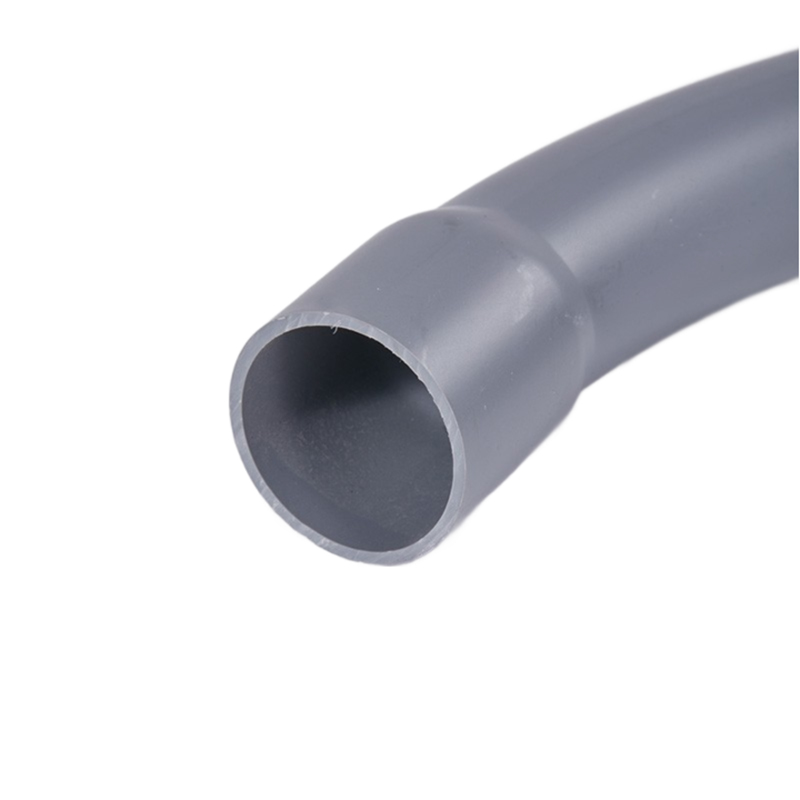

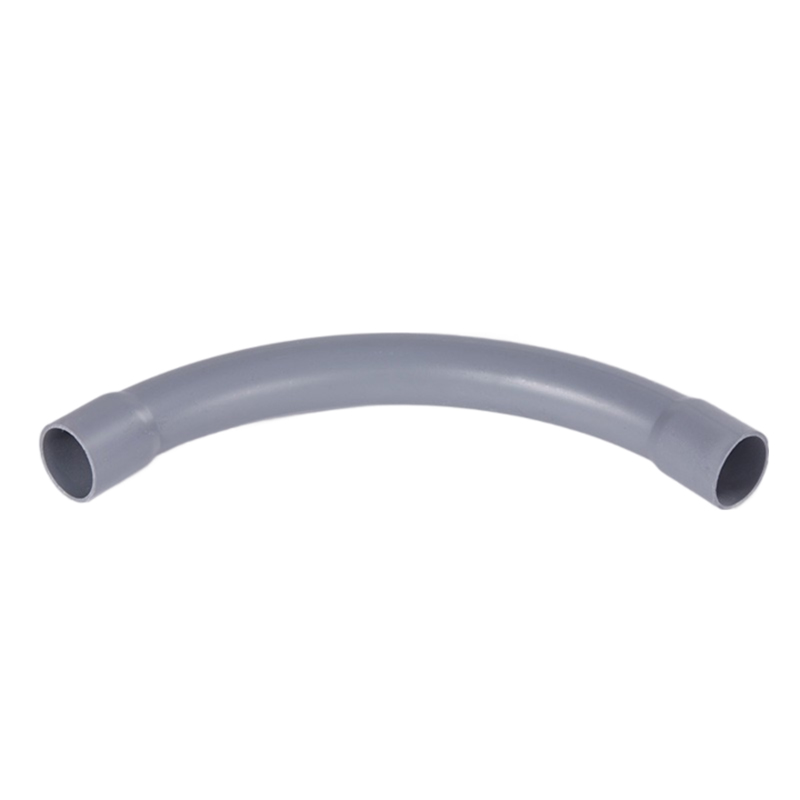

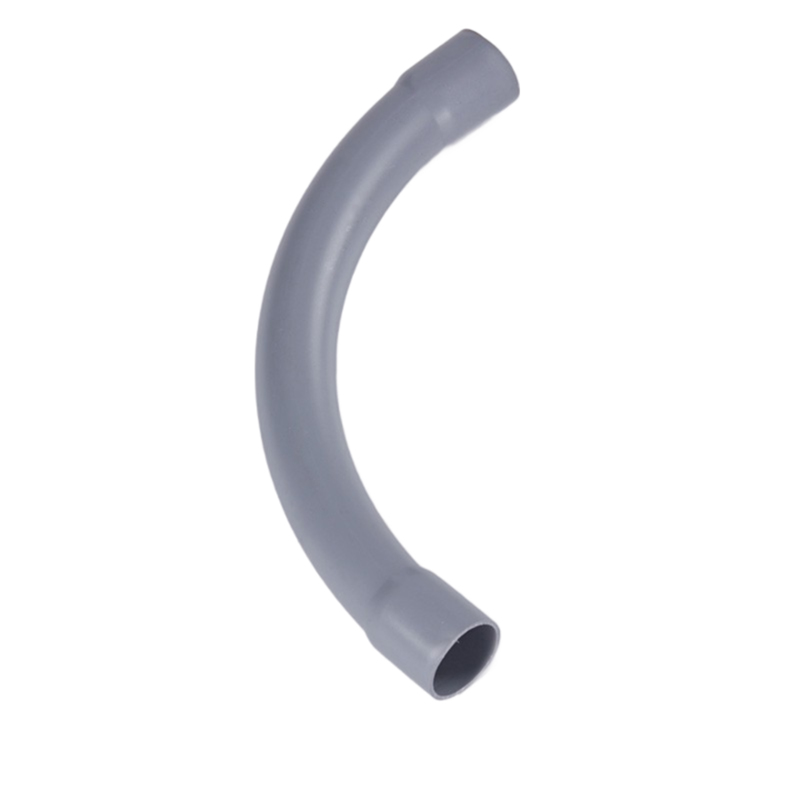

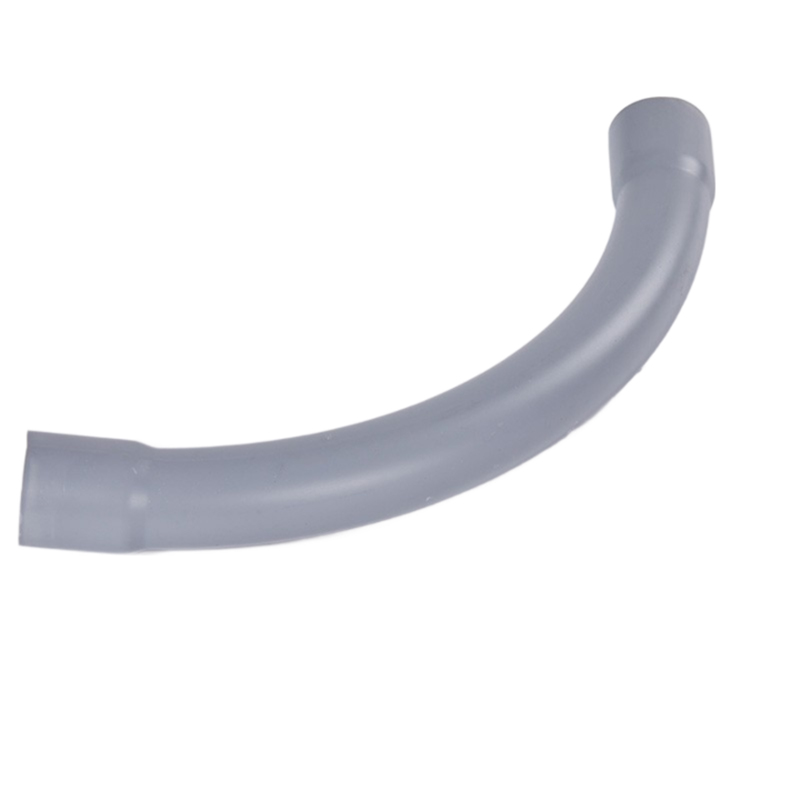

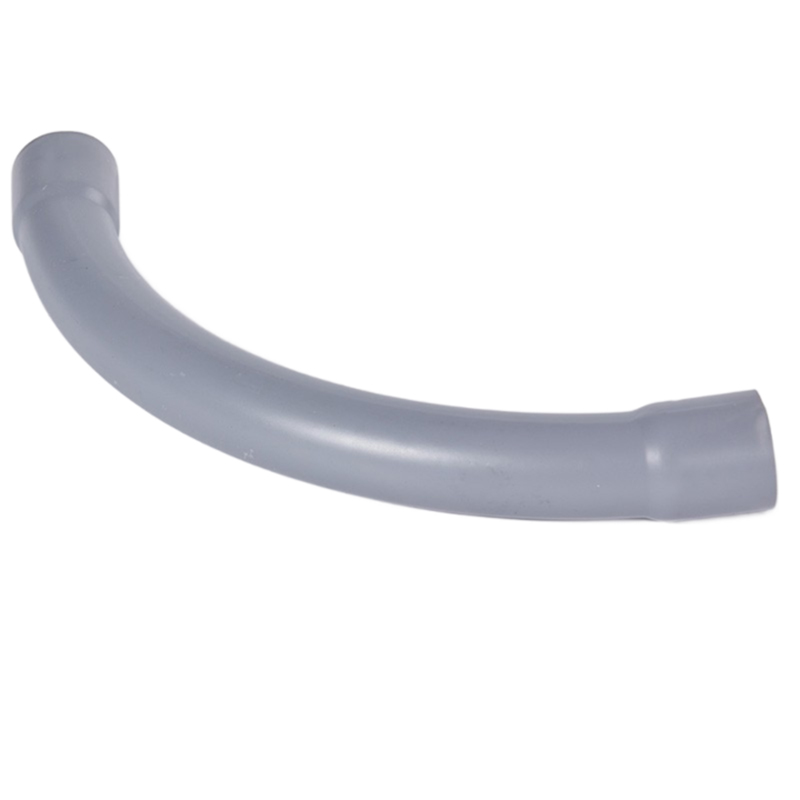

PVC Conduit Bend

Features

* A section of Schedule 40 PVC conduit which has been heated and bent to enable a 90° directional change in a conduit run
* A standard conduit bell is formed on one end while the other end is a spigot(plain) end
* Both ends are solvent weld

Applications

* Can be used above ground or buried; suitable for use in concrete encasement

Standard Material

* Schedule 40 PVC

Request For Quotation

Description

45°/ 90°PVC Conduit Bend

Trade Size	AVG OD (IN)	MINIMUM AVG ID (IN)	MIN WALL (IN)
NPS
1/2"	0.84	0.578	0.109
3/4"	1.05	0.78	0.113
1"	1.315	1.004	0.133
1-1/4"	1.66	1.335	0.14
1-1/2"	1.9	1.564	0.145
2"	2.375	2.021	0.154
2-1/2"	2.875	2.414	0.203
3"	3.5	3.008	0.216
3-1/2"	4	3.486	0.226
4"	4.5	3.961	0.237
5"	5.563	4.975	0.258
6"	6.625	5.986	0.28
