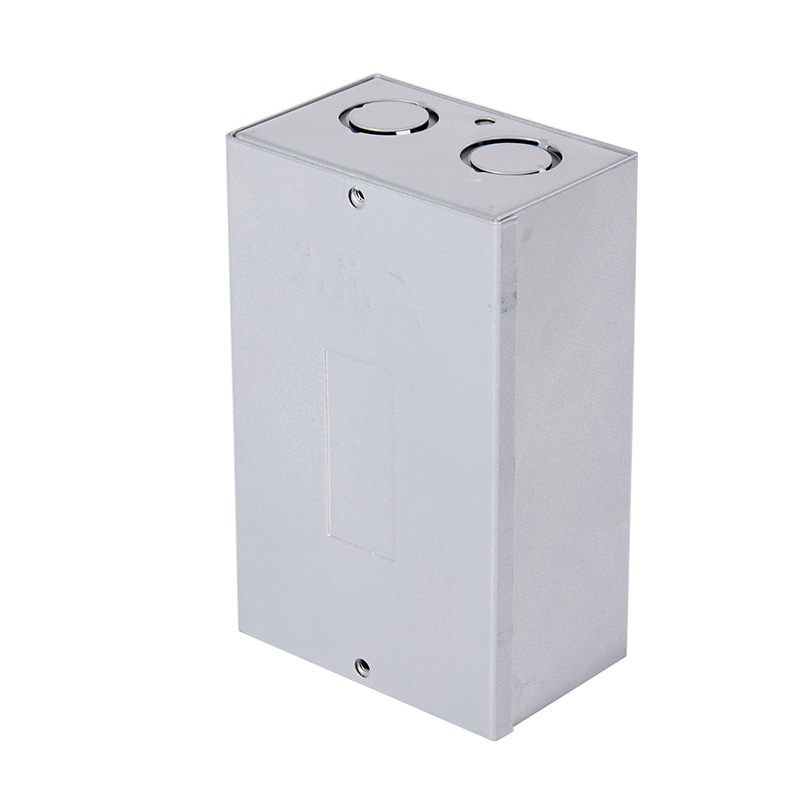

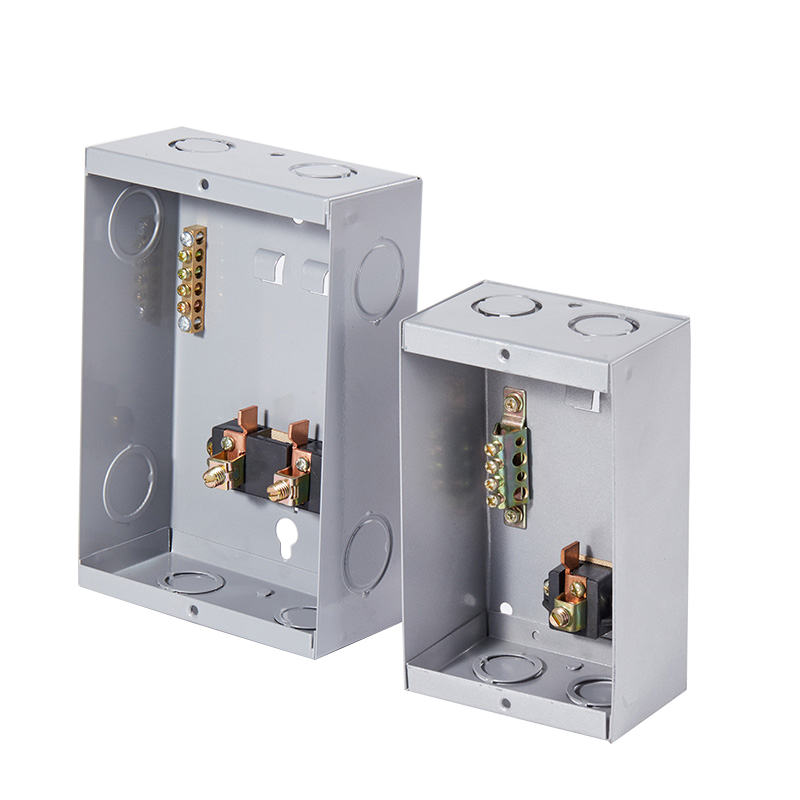

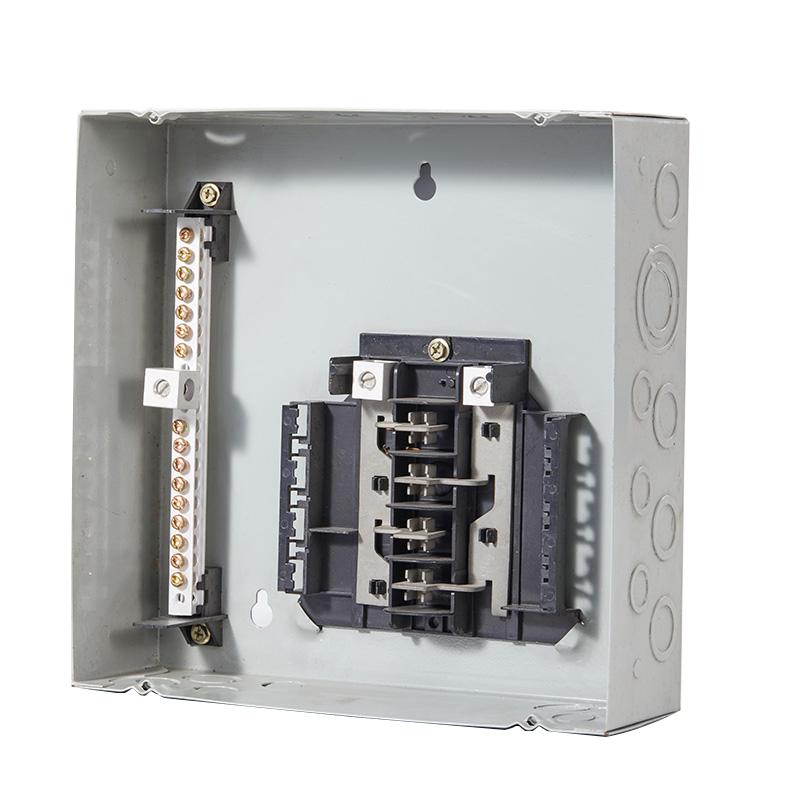

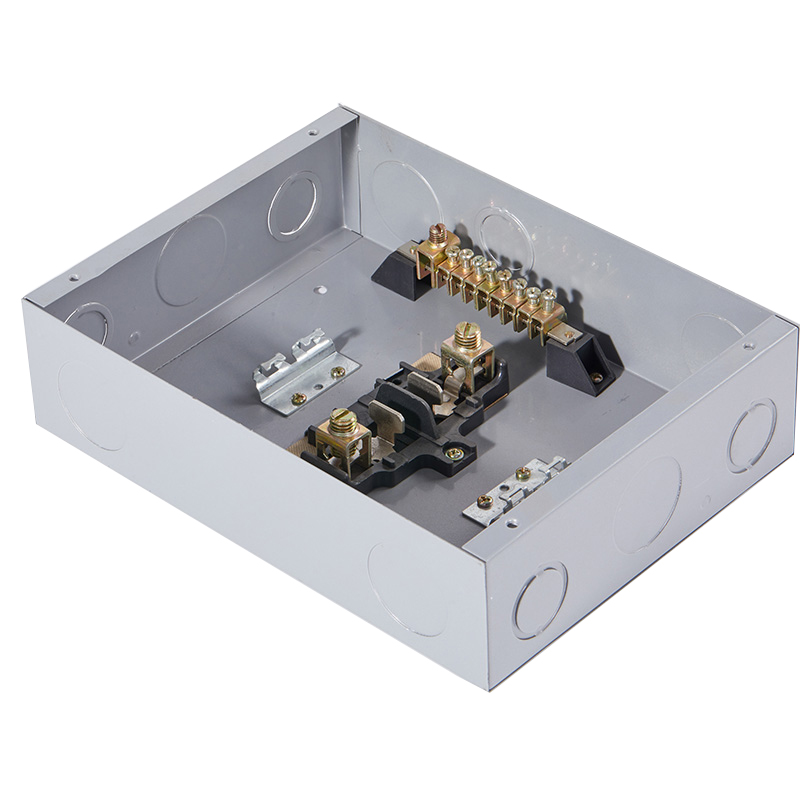

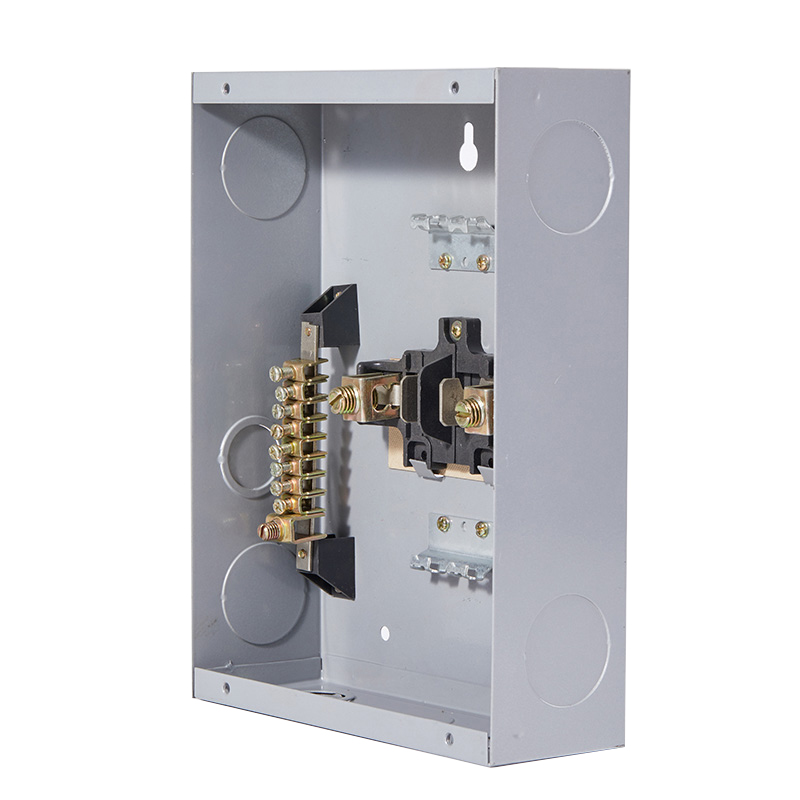

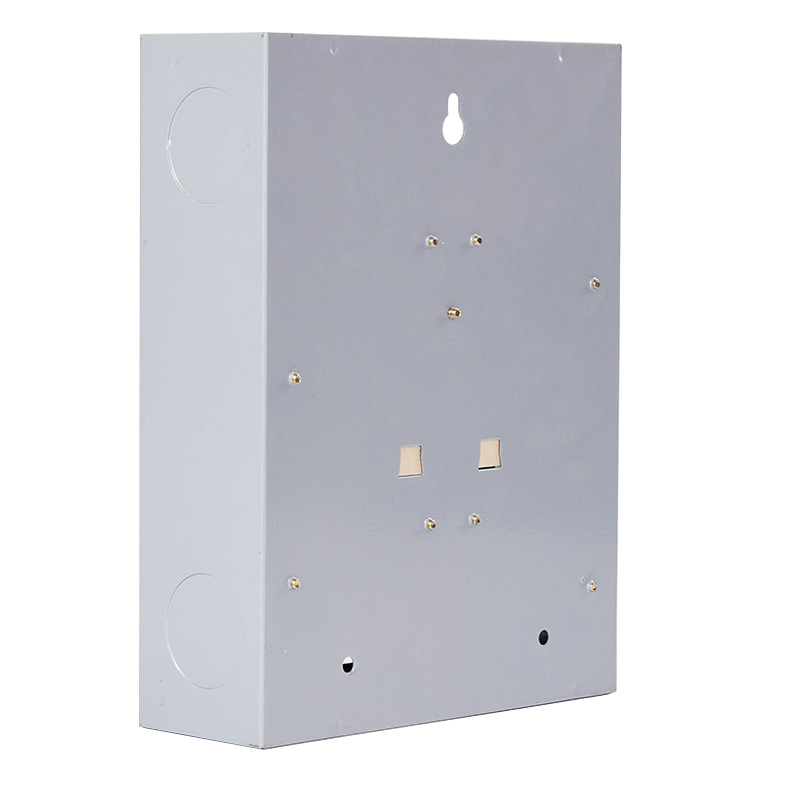

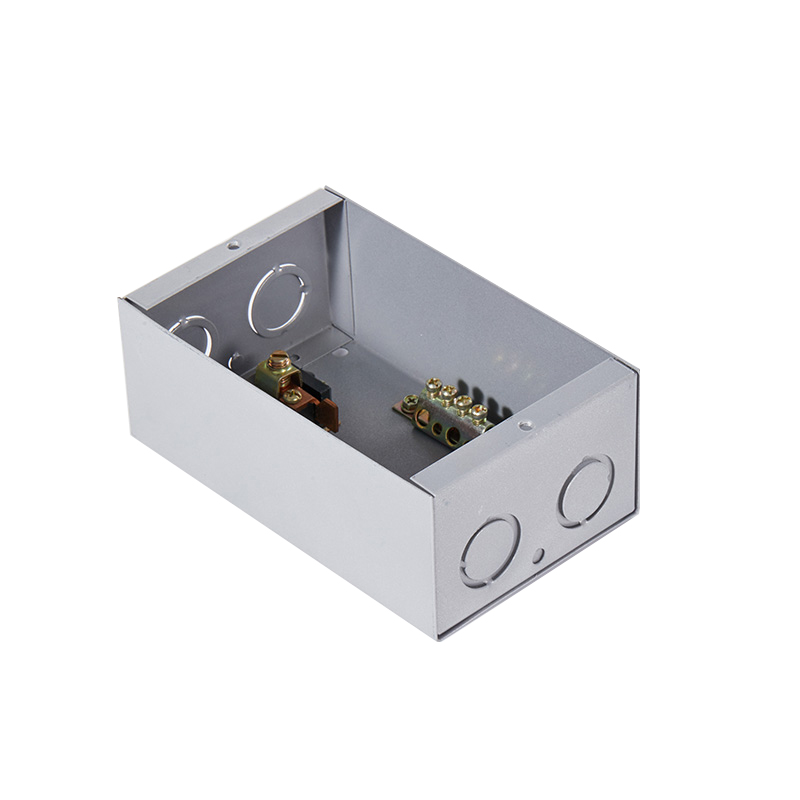

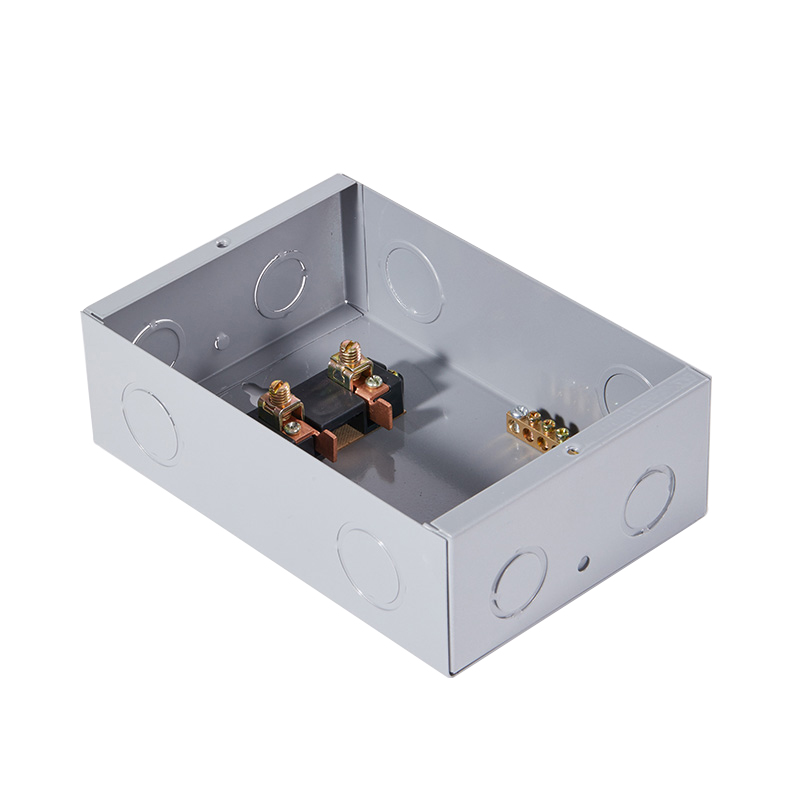

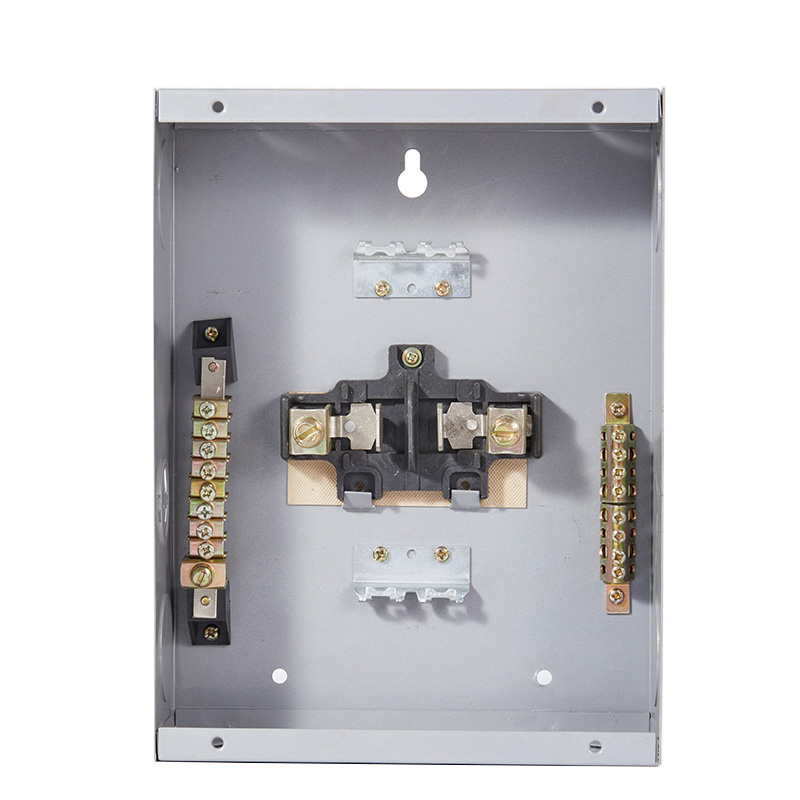

GT Series Load Centers

Features

* Made out of high quality electro-galvanized steel sheet of up to 0.9-1.5mm thickness.

* Matt-finish polyester powder coated paint.

* Knockouts provided on all sides of the enclosure.

* Accept GE’s Q line circuit breakers, including GE’s exclusive 1/2” THQPs.

* Suitable for single-phase, three-wire, 120/240Vac,rated current to 225A.

* Convertible to main breaker.

* Wider enclosure offers ease or wiring and move heat dissipation.

* Flush and surface mounted designs.

* Knockouts for cable entry are provided on top, bottom of the enclosure.

Application

* GT series Load Centers have been designed for safe, reliable distribution and control of electrical power as service entrance equipment in residential, commercial and light industrial premises. They are available in plug-in designs for indoor applications.

Standard Material

* Steel

Request For Quotation
  • Description
GT Series Load Centers


Cat# Front Type Main Ampere Rating 1" Spaces 1/2" Spaces
      1 Pole 2 Poles 1 Pole 2 Poles
GTL412C Combination 125 4 2 8 3
GTL612F Flush 125 6 3 12 4
GTL812F Flush 125 8 4 16 8
GTL1212F
Combination 125 12 6 24 10
